Features
- Temperature
range -80°C to 400°C
- Hi resolution sensor 0,03 uW
- Easy installation and operation
- Low-thermal-inertia furnace

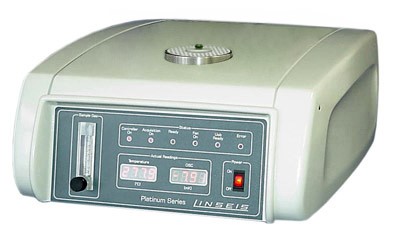

Description The
DSC - PT100 cell was particularly developed to ensure an optimum reproduction of
the base line. Furthermore emphasis was put on a highest possible resolution.
The conception of the cell guarantees a high mechanical and chemical resistance.
The perfect isolation in combination with the gas purge prevents the emergence
of ripe formation or freezing up. These construction features of the cell
guarantee measurements under very pure gas atmospheres. The use of mass flow
controllers assures the precise gas control.
With its wide temperature
range (from - 80 up to 400°C / standard), the DSC - PT100 enjoys a wide field of
applications, especially when dealing with polymers and plastics
(characterization, quality-control) as well as with organic and pharmaceutical
compounds (polymorphism, purity, thermal stability), with inorganic substances
(dehydration, transition, decomposition), with metals (transition) … from the
raw or transformed materials.
Temperature
range |
-80 …
+400°C (Standard) |
Heating/Cooling
rates |
0,1 up to
50°C/min |
Temperature
accuracy |
+/-0,2°C
(substance calibration) |
Time
constant |
2...3
s |
Resolution |
0,03
uW |
RMS
Noise |
0,7
uW |
Data
acquisition rate |
0,1 s up to
3600 s / data point |
Atmospheres
|
N2, Argon,
O2 etc., reducing and oxidizing |
Measuring
range |
-250 up to
+250 mW |
Calibrations
material included
Calibration: recommended 6 month interval
|
