L75 Standard
Software
Standard Software Package TA-WIN and TA-DIL with Data Acquisition
and Evaluation
Features:
A) Data acquisition part:
- Set up of
temperature controller with heat up speed, dwell time and cooldown speed.
- Up to 16 different stages can
be programmed
- Up to 99 cycles can be
programmed
- Different measuring systems for
single and dual push rod can be selected
- Essential measurement data for
documentation have to be entered:
Sample name,
correction sample name, operator, laboratory, atmosphere, gas flow, sample
material, commentary, sample length, selected measuring range, max. temperature,
deration of run, sampling frequency.
- The scheduler for automatic
measurement sequences, for up to 16 preprogrammed
runs
can be programmed.
B) Data evaluation part:
- real time color
display
- automatic and manual scaling
- time vs. Temperature profils,
or time vs. Delta L selection
- first and second order
derivatives
- analysis save feature
- foreground/background operation
- multitasking operation for
operation of different instruments or tasks
- zoom / individual segment
display
- multiple curve / module overlay
- on-line help menu
- annotation and drawing tools
- copy to clip board function
- post collection editing
- ASCII export
- data smoothing
- baseline file subtraction
- cursor function
- statistical curve evaluation
(mean curve)

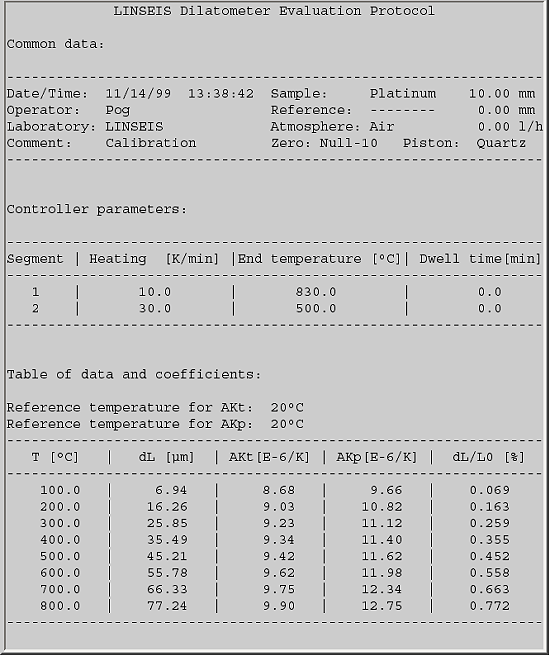

- print out of table of data and
coefficients
- calculation of Delta L, CTE,
relative expansion Delta L / L0
- curve arythmetic
- softening point evaluation
standard feature
Special
Dilatometer Software
·
L75/DTA
DTA measurement software for
Dilatometers
L75_SDD_ENG.pdf Size 290 KB
·
L75/SDC
Simultaneous Dilatometer Calorimeter
Measurement
L75_SDC_ENG.pdf Size: 17 KB
·
L75/RCS
Rate Controlled Sintering
Software
L75_RCS_ENG.pdf Size: 104 KB
·
L75/SOFT
Softening Point Software
L75_SPD_ENG.pdf Size: 16 KB
All LINSEIS Thermal Analysis Instruments are controlled through
sophisticated Windows® software. The complete program consists of three
sections: temperature control, data acquisition, and data evaluation. Essential
sample information is entered in the data acquisition section.

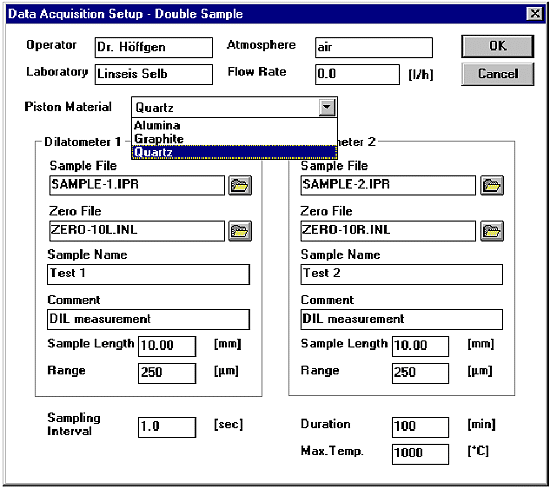

Data Acquisition
section
Essential
data for each sample test includes; operator, laboratory, atmosphere, gas flow,
material, sample file name, zero file name, comments, sample length, measuring
range, max. temperature, duration of run, sampling frequency, heating and
cooling rates, number of cycles.
All menus are easily understood and
intuitive. The software is quickly mastered with minimal training
needed.

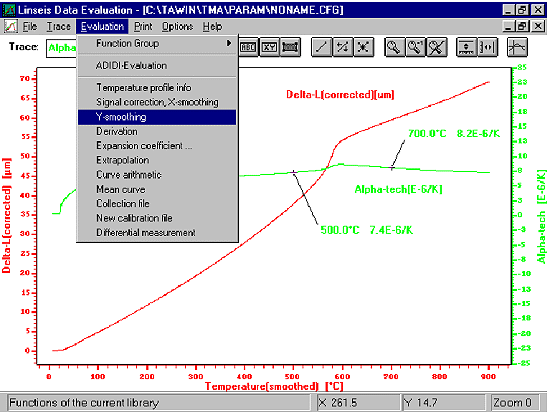

Evaluation
section
The
evaluation is part of the complete windows software, It features a number of
functions enabling a full evaluation of all types of data. All evaluation and
data collection can be performed simultaneously. Data can be corrected using
zero and calibration correction. Data evaluations include: absolute length
change, relative length change, and coefficient of thermal expansion. A mean
curve with statistical analysis can be performed on multiple curves. Graphical
displays can be printed on all windows compatible printers or plotters. Data can
be displayed and printed in a table format. The software also
includes an ASCII export feature.
