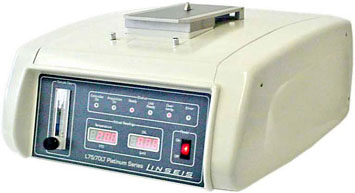

Polymer and Resins TMA

Description

This TMA was specifically developed to measure the CTEs of Polymers and Resins in the temperature range -30 to +70°C.

The instrument is built into a very compact nicely designed housing, where all necessary components are included.
The sample can be inserted after the protecting cover is opened from the top of the instrument. The sample is loaded between a fixed point and a moveable push rod out of quartz glass, which is connected to a high precision LVDT sensor, with 10nm / 1,25nm/digit resolution.
Sample dimensions of maximum 50 mm length and 8, 5 mm diameter are possible. An option is available, so that the hardening processes of Resins can be measured.

	TMA - PT10
Temperature Range	-30 to +70°C
Max. sample size	50 mm (L) , 8,5 mm (D)
Measurement precision	+/- 0.1%
Resolution	0.2nm
RMS Noise	3.5nm
Dynamic baseline drift	<1µm
Force range	0.001 to 1 N
Force resolution	0.001 N
Mass Flow Control	Optional
Atmosphere	Air
Operation Modes
Standard	Included
Optional
DTA feature	Optional
