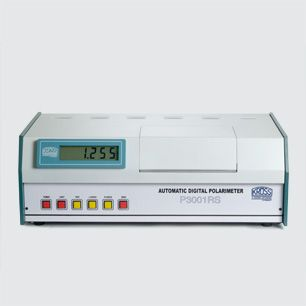

Kruss P 3001/3002/RS
Automatic digital polarimeter, easy to operate, with automatic detection and digital angle conversion.
Measuring range: +/-45° Accuracy: 0.01° /0.004° .With polarimeter tubes 100 mm and 200 mm, sodium lamp and RS232 interface.
Applications:
Pharmaceutical Industry
Monitoring of chemical processes
Purity control and regulation of concentration
Chemical Industry
Purity control and regulation of concentrations
Analysis of optically active components (qualitative und quantitative)
Control of configuration changes
Monitoring of chemical processes
Sugar Industry
Quality control of intermediate and end products
Control of fructose and glucose
Food Industry
Control of concentration
Purity control
Quality control
Technical Data:
|
|
P3001/RS |
P3002/RS |
|
Articel-Number |
P3001/RS |
P3002/RS |
|
Measuring range |
+/- 45° |
+/- 45° |
|
Resolution |
0.005 |
0.001 |
|
Accuracy |
0.01° |
0.004° |
|
Balance Speed |
1°/sec |
1°/sec |
|
Min. Sample Transmittance |
10% |
1% |
|
Light Source |
Sodium vapor lamp 589nm |
Sodium vapor lamp 589nm |
|
Power Supply |
230V, AC, 50Hz, 100W |
230V, AC, 50Hz, 100W |
|
|
|
|
Scope of Supply
|
Scope of Supply |
Polarimeter tubes 100 and 200 mm |
|
|
Spare sodium vapor lamp 589 nm |
|
|
Glass coverplates for polarimeter tube |
Accessories
|
P1000-100 |
Sample cell 100mm |
|
P1000-200 |
Sample cell 200mm |
|
P1000-D100 |
Flow-thru cell with funnel and exit tubing, 100mm |
|
P1000-D200 |
Flow-thru cell with funnel and exit tubing, 200mm |
|
P1000-400 |
Quartz control plate for calibration |
|
|
in °: -10°, +8°, +15°, +17°, +26°, 33°, 34° (+/-1°) |
|
|
in °Z: -30°Z, +25°Z, +45°Z, +49°Z, +75°Z, +95°Z, +99°Z (+/-1°) |
|
P1000-500 |
Quartz control plate for calibration |
|
|
in °: -34°, -17°, +17°, +34° (+/-1°) |
|
|
in °Z: -99°Z, -49°Z, +49°Z, +99°Z (+/-1°Z) |
|
P1000-150 |
Glass-cover plate for sample cell, 2 pieces |
|
P1000-300 |
Spare sodium lamp |
Documentatie
4153_Labor-Polarimeter_engl.pdf
